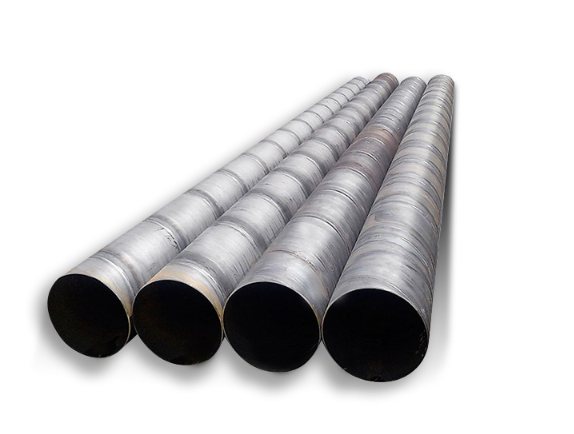

Spiral Submerged Arc Welded Pipe SSAW
The Spiral Submerged Arc Welded Pipe (SSAW), also known as Helical Submerged Arc Welded Pipe, is a specialized type of steel pipe characterized by its unique manufacturing process. Unlike straight-seam pipes, SSAW pipes are formed by rolling a steel strip into a spiral (helical) shape and then welding the seam using the Submerged Arc Welding (SAW) technique.
This production method allows for the manufacture of large-diameter pipes from narrower steel strips, offering significant flexibility in size and making it a cost-effective solution for long-distance pipelines and large-scale structural applications.
Manufacturing Process
The core principle of SSAW pipe involves three key stages:
Strip Feeding: A continuous coil of steel strip (skelp) is fed into the forming machine at a specific angle to the centerline of the pipe.
Spiral Forming: The strip is gradually bent into a helical shape, creating a cylindrical tube with a spiral seam.
Submerged Arc Welding (SAW): An arc is struck between the wire electrode and the workpiece. This arc is "submerged" under a blanket of granular flux, which prevents spatter and sparks, protects the weld from atmospheric contamination, and results in a deep, narrow weld bead with excellent mechanical properties. Both the internal and external spiral seams are typically welded.
Key Characteristics & Advantages
Flexible Dimensions: Can produce pipes with large diameters (up to 2540mm or more) and varying wall thicknesses from a single standard-width coil.
High Weld Quality: The submerged arc welding process creates welds with high depth-to-width ratios and excellent toughness, making them suitable for high-pressure applications.
Cost-Effective: More economical than seamless pipes or Longitudinally Submerged Arc Welded (LSAW) pipes for large diameters.
Good Appearance: The spiral weld provides a uniform and visually distinct pattern.
Primary Applications
Due to their ability to handle high pressure and large volumes, SSAW pipes are predominantly used in:
Oil & Gas Transmission: Main pipelines for transporting crude oil, natural gas, and refined products over long distances.
Water Supply & Drainage: Large-scale municipal water pipelines and sewage discharge systems.
Piling: Used as bearing piles (foundations) for bridges, docks, and high-rise buildings (often referring to ASTM A252 Grade 2 or 3).
Structural Use: Construction of offshore platforms and other heavy-duty structural supports.
Conclusion
The Spiral Submerged Arc Welded Pipe remains a cornerstone product in pipeline engineering. Its ability to efficiently produce large-diameter, high-strength pipes makes it indispensable for infrastructure projects involving fluid transportation and deep foundation piling. When sourced according to recognized standards like API 5L or ASTM A252, SSAW pipes offer a reliable and economical solution for demanding industrial needs.
