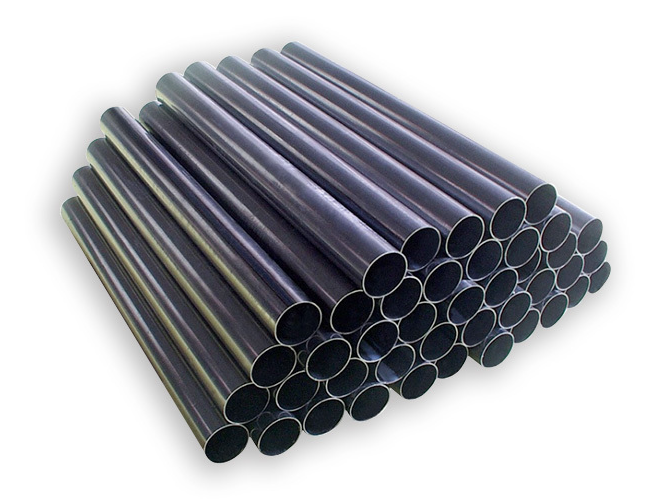

LSAW Pipe
The Longitudinal Submerged Arc Welded Pipe (LSAW) is a premium-grade steel pipe manufactured by bending and welding a single flat steel plate along its longitudinal axis (straight seam). Utilizing the Submerged Arc Welding (SAW) process, this pipe is engineered for applications demanding the highest levels of strength, reliability, and pressure resistance.
Unlike spiral-welded pipes, LSAW pipes feature a single, straight weld seam running parallel to the pipe's length, which contributes to superior mechanical properties and uniform stress distribution, making it the preferred choice for critical high-pressure transmission lines.
Manufacturing Process
The production of LSAW pipe typically follows a UOE or JCOE process:
Plate Preparation: A high-quality steel plate is selected, inspected, and prepared.
Forming:
UOE Method: The plate is first pressed into a "U" shape, then into an "O" shape.
JCOE Method: The plate is progressively pressed into a "J" shape, then a "C" shape, and finally an "O" shape (more flexible for smaller batches).
Welding: The longitudinal seam is welded inside and out using the Submerged Arc Welding (SAW) technique. The flux covering ensures deep penetration and a clean, high-quality weld.
Expansion: The pipe is often hydrostatically expanded to relieve residual stress, improve roundness, and ensure dimensional accuracy.
Key Characteristics & Advantages
Superior Weld Integrity: The straight, longitudinal seam is easier to inspect (via X-ray, ultrasonic) and has lower residual stress compared to spiral welds.
High Pressure Resistance: Excellent for pipelines requiring high burst strength and toughness.
Dimensional Accuracy: High roundness and straightness, meeting stringent tolerance requirements.
Large Diameter Capability: Can be produced in very large diameters (up to 1626mm / 64 inches) essential for high-volume transmission.
Primary Applications
LSAW pipes are the industry benchmark for critical infrastructure projects:
Oil & Gas Transmission Pipelines: The primary application for cross-country pipelines carrying natural gas and crude oil under high pressure.
Offshore Platforms: Used for jacket legs, risers, and structural members in harsh marine environments.
Structural Piling: Deep foundation piles (ASTM A252) for bridges, wharves, and high-rise buildings requiring high load-bearing capacity.
Power Plants: Low-temperature service pipes and boiler feedwater lines.
Water Infrastructure: Large-diameter water mains and penstocks.
Conclusion
For projects where safety, pressure integrity, and long-term reliability are non-negotiable, the Longitudinal Submerged Arc Welded Pipe (LSAW) stands as the industry gold standard. Its robust manufacturing process and superior mechanical characteristics make it the undisputed choice for major oil & gas transmission arteries and heavy-duty structural foundations worldwide.
