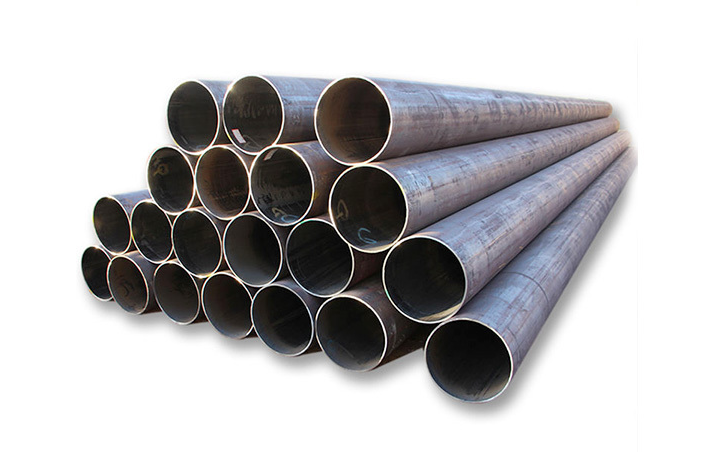

A106 Grade B Steel Pipe
ASTM A106 Grade B is one of the most commonly used seamless carbon steel pipe grades in the ASTM A106 standard. It is specifically designed for high-temperature and high-pressure service environments, making it a critical material in industries such as oil and gas, power generation, petrochemical, and boiler manufacturing.
Key Characteristics
Material Composition: A106 Grade B contains a balanced chemical composition with carbon, manganese, phosphorus, sulfur, silicon, chromium, copper, molybdenum, nickel, and vanadium. The carbon content is typically limited to 0.30%, ensuring good weldability and formability while maintaining adequate strength.
Mechanical Properties: The minimum tensile strength of A106 Grade B is 415 MPa (60,000 psi), with a minimum yield strength of 240 MPa (35,000 psi). It offers excellent ductility, with elongation requirements varying based on the pipe wall thickness.
Manufacturing Process: A106 Grade B pipes are manufactured through the seamless process, which means they are produced without a welded seam. This seamless construction provides superior pressure resistance and eliminates potential weak points associated with welded joints.
Temperature Service: The grade is suitable for bending, flanging, and similar forming operations, as well as for fusion welding. It performs reliably in high-temperature applications, typically up to 750°F (400°C), depending on the specific service conditions.
Applications
A106 Grade B seamless pipes are extensively used in:
Oil and Gas Pipelines: For transporting crude oil, natural gas, and refined products under high pressure and temperature.
Power Plants: In boiler tubes, superheater tubes, and steam lines.
Refineries and Petrochemical Plants: For process piping, heat exchangers, and furnace tubes.
Pressure Vessels: Where high strength and reliability are required.
Comparison with Other Grades
ASTM A106 covers three grades: A, B, and C. Grade B offers a middle-ground solution, providing higher strength than Grade A while maintaining better weldability and lower cost than Grade C. This balance makes Grade B the most widely specified and utilized grade in the A106 family.
Standards and Compliance
A106 Grade B pipes must comply with the requirements of ASTM A106/A106M, which specifies dimensions, mechanical properties, chemical composition, testing procedures, and marking requirements. Additional testing, such as hydrostatic testing, ultrasonic examination, or eddy current testing, can be specified to meet specific project needs.
