Galvanized Channel Steel

Short Description:

Hot-dip galvanized channel steel is also called hot-dip galvanized channel steel and hot-dip galvanized channel steel. It is an effective metal anti-corrosion method and is mainly used in metal structural facilities in various industries. It is to immerse the channel steel after derusting in the molten zinc of about 440~460 ℃, so that the zinc layer is attached to the surface of the channel steel, thus achieving the purpose of...

Send email to us

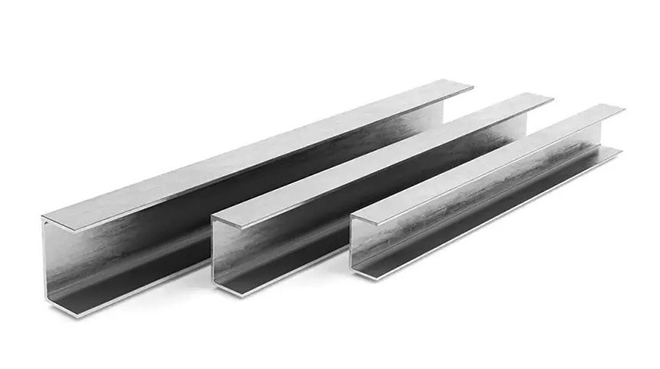

Product Introduction: Galvanized Channel Steel

The Galvanized Channel Steel is a carbon steel profile with a distinctive "C"-shaped cross-section that has been coated with a protective layer of zinc through the hot-dip galvanizing process. Combining the inherent structural strength of channel steel with the robust corrosion resistance of zinc, this product is a fundamental building block in modern construction and industrial fabrication. The galvanization process ensures a long service life even in harsh environments, making it a superior alternative to plain black (uncoated) channel steel for outdoor and corrosive applications.

Manufacturing Process

The production of galvanized channel steel involves two key stages:

1. Channel Forming: A carbon steel strip or plate (typically Q235B or SS400) is cold-formed or hot-rolled into the desired channel shape.

2. Hot-Dip Galvanizing: The formed channel is thoroughly cleaned and then immersed in a bath of molten zinc at approximately 450°C (850°F). During this process, the iron in the steel reacts with the zinc to form a series of metallurgically bonded zinc-iron alloy layers, topped with a pure zinc layer. This creates a durable, abrasion-resistant coating that provides both barrier protection and cathodic (sacrificial) protection to the base steel.

Key Features & Advantages

• Superior Corrosion Resistance: The zinc coating acts as a physical barrier and a sacrificial anode, corroding preferentially to protect the underlying steel from rust, even if the surface is scratched.

• Extended Service Life: Hot-dip galvanized coatings can last 50+ years in rural environments and 20-25 years in severe urban/industrial settings with minimal maintenance.

• High Strength & Rigidity: Retains the excellent structural integrity and load-bearing capacity of the original carbon steel channel.

• Low Maintenance: Eliminates the need for frequent painting and touch-ups, significantly reducing the lifecycle cost of the structure.

• Self-Healing Properties: The zinc coating can "heal" small scratches and damaged areas through the formation of zinc oxide and carbonate films.
