Pipe Roof Pipe
Product Description

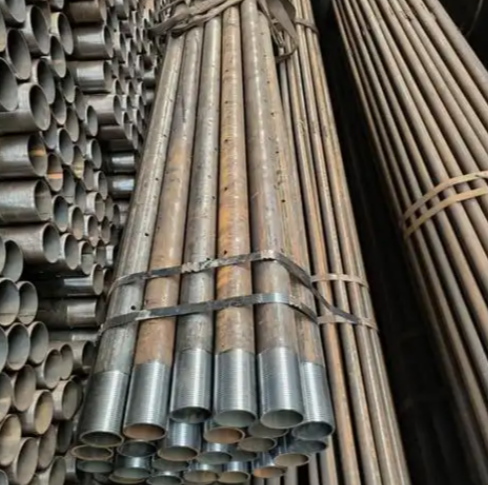

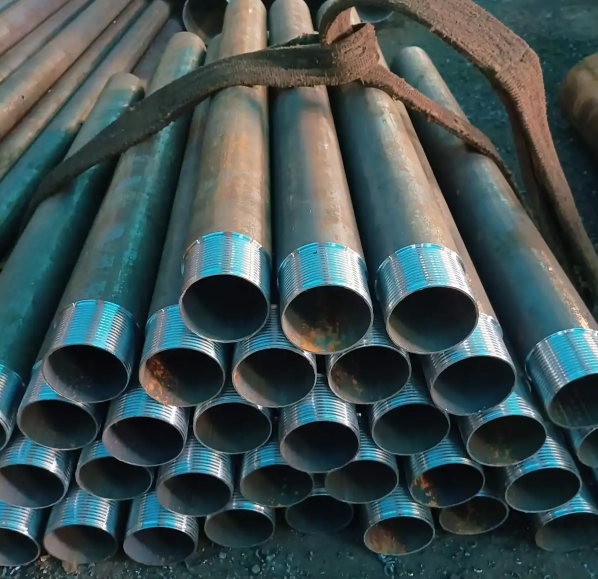

Pipe roof pipes are large-diameter, thick-walled seamless steel pipes used in the "Pipe Roof Method" (also known as the Umbrella Arch Method) for tunneling and underground excavation. These pipes are installed horizontally or at a slight upward angle around the tunnel perimeter ahead of the excavation face, forming a protective "umbrella" or canopy. This pre-support system stabilizes the ground above and around the tunnel, preventing collapse during excavation in unstable soil, fractured rock, or shallow overburden conditions. The pipes are typically connected with threaded couplings and feature perforated sections for grouting to reinforce the surrounding ground.
Key Features and Advantages
Superior Ground Support: The large diameter (typically φ70mm to φ180mm) and thick walls provide high rigidity, effectively bearing heavy overburden pressure and minimizing ground settlement during tunneling.
Pre-Excavation Stabilization: Installed before excavation begins, the pipe roof creates a stable arch that allows safe tunneling through weak or water-bearing strata, fault zones, and urban areas where surface subsidence must be avoided.

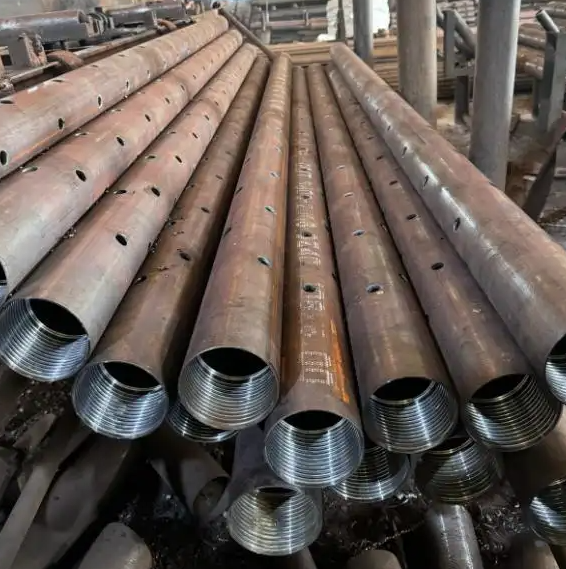

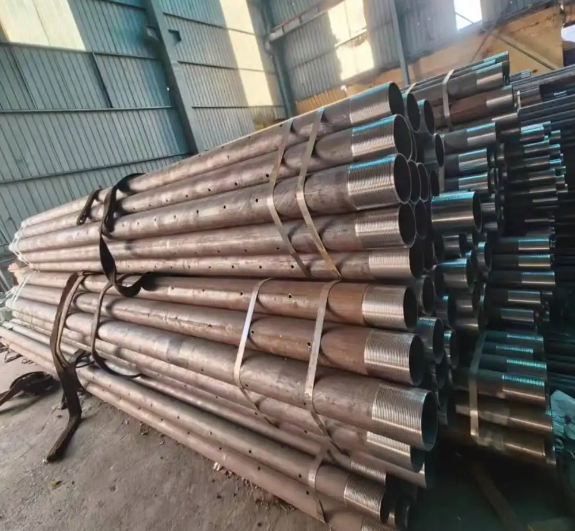

Integrated Grouting System: Perforated holes along the pipe length enable cement grout injection, which consolidates loose soil or fractured rock, enhances ground strength, and bonds the pipes into a unified support structure.
Long-Distance Protection: With individual pipe lengths extending up to 40 meters or more, the system provides continuous, long-range support for major tunnel projects, reducing the need for frequent reinstallation.
Product Applications
Tunnel Construction: Widely used in highway, railway, and subway tunnels passing through soft soil, gravel layers, or broken rock formations.
Urban Underpasses: Essential for box culvert jacking and underpass projects beneath roads or railways, where maintaining surface stability is critical to avoid disrupting traffic.
Slope and Landslide Stabilization: Applied to reinforce unstable slopes or landslide-prone areas by creating a rigid, load-bearing barrier.
Emergency Tunnel Repair: Used to stabilize collapsed or damaged tunnels, providing a safe framework for rescue and reconstruction efforts.
