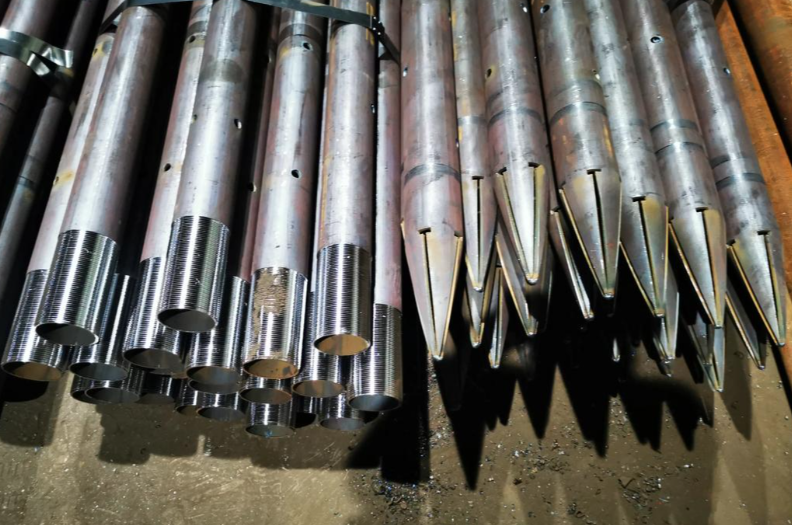

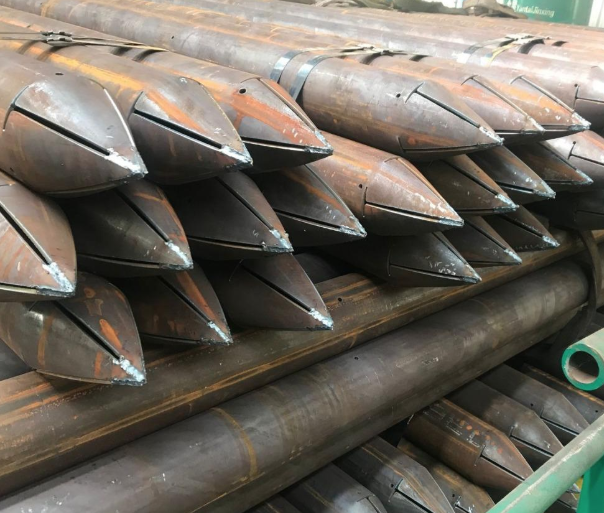

Grout Pipe
Product Description

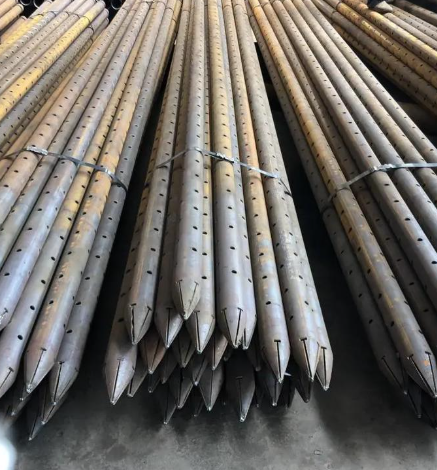

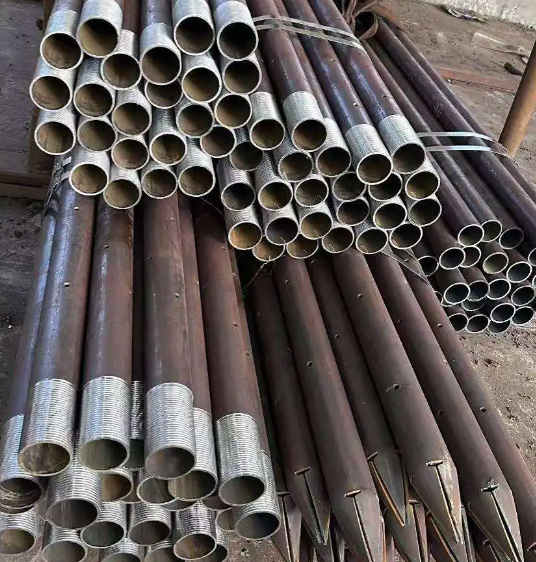

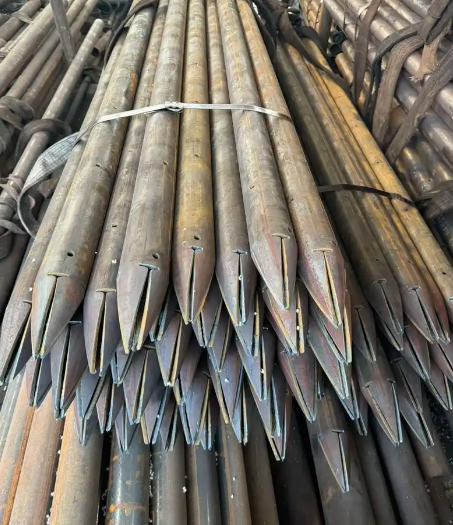

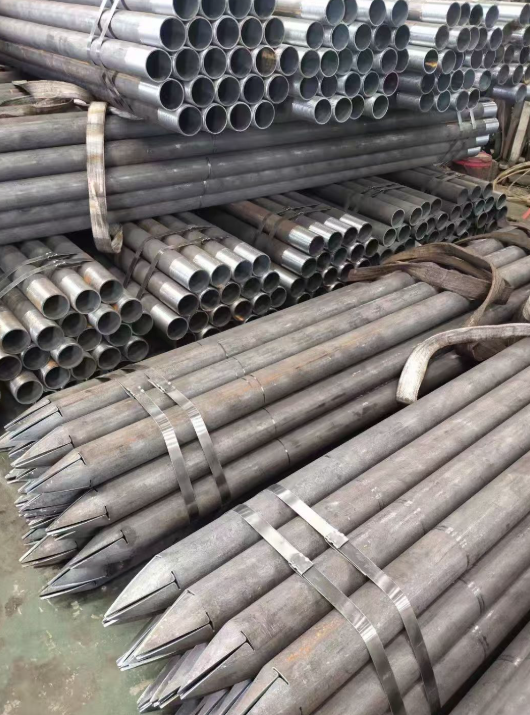

A grout pipe, also known as an injection pipe or grouting tube, is a specialized conduit used in geotechnical engineering and construction to inject fluid materials—such as cement slurry, chemical resins, or bentonite—into soil, rock formations, or structural voids. These pipes serve as the delivery channel for ground improvement and stabilization techniques. They can be temporary (retrieved after injection) or permanent (left in place to reinforce the ground). Grout pipes are often equipped with specific features like perforations, valves (such as Tube-à-Manchette or TAM systems), or packers to control the flow and pressure of the grout, ensuring it reaches the targeted zones effectively.
Key Features and Advantages
Controlled Injection: Advanced grout pipes, like the Tube-à-Manchette system, feature rubber sleeves or one-way valves that allow for controlled, staged injection. This prevents the backflow of grout and ensures the slurry penetrates the specific soil layers intended.
High Pressure Resistance: Designed to withstand high injection pressures without bursting, these pipes ensure that grout is forced deep into fractures, voids, or porous soil, maximizing the compaction and bonding effect.
Versatility in Material: Grout pipes can be made from PVC, steel, or fiberglass, depending on the required strength and corrosion resistance. Steel pipes often double as structural reinforcement (like in micropiles), while PVC is commonly used for pure injection purposes.
Ground Improvement: By delivering grout effectively, these pipes help fill voids, reduce soil permeability (waterproofing), and increase the load-bearing capacity of the ground, preventing settlement and structural failure.
Product Applications
Tunneling and Underground Works: Used for pre-grouting to stabilize the ground ahead of a tunnel face or for backfill grouting to fill the gap between the tunnel lining and the surrounding rock.
Foundation Engineering: Essential for micropiles, soil nailing, and ground anchoring, where the pipe injects grout to bond the reinforcement to the soil.
Dam and Levee Repair: Used to inject grout into the foundation or body of dams to create cut-off walls that prevent water seepage.
Structural Lifting and Repair: Used in "slab jacking" or "mud jacking" to inject material under settled concrete foundations or roads to lift them back to their original level.
