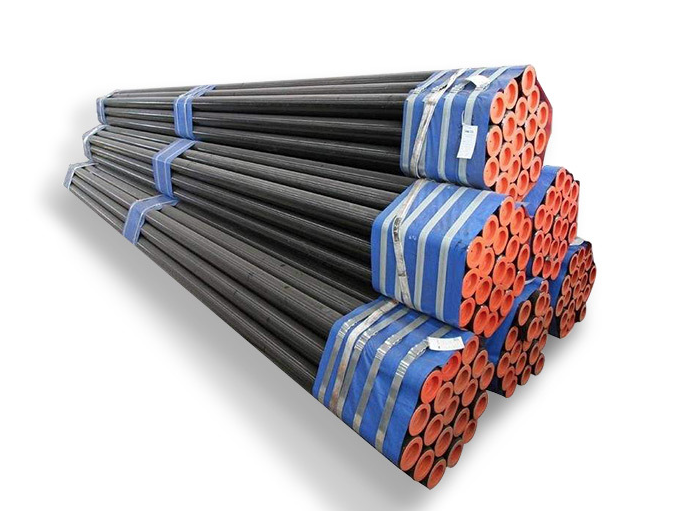

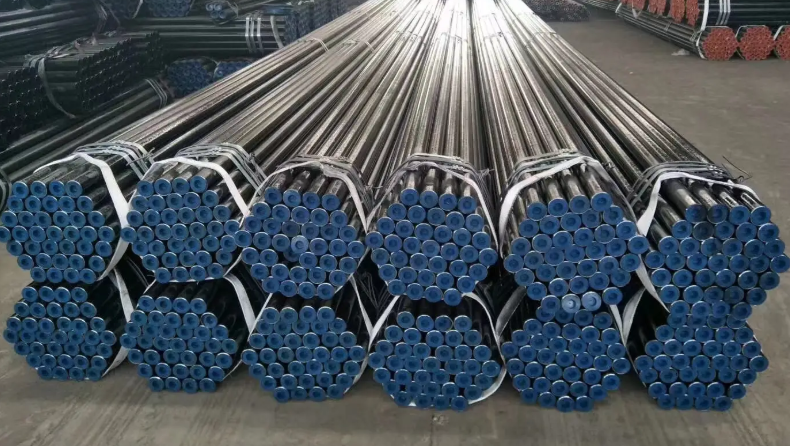

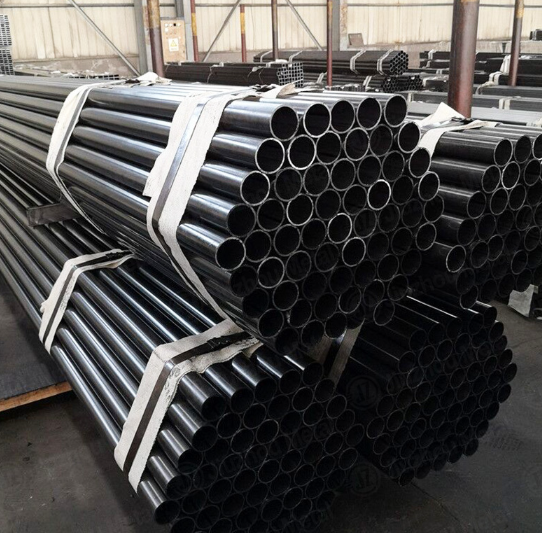

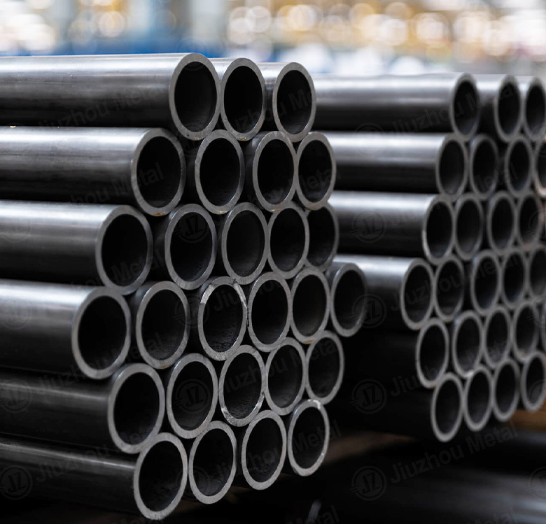

API Spec 5L Steel Pipe
Product Introduction
API Spec 5L Steel Pipe is the global industry standard for line pipe used in the transportation of oil, natural gas, and water in the petroleum and natural gas industries. Published by the American Petroleum Institute (API), this specification covers seamless and welded steel pipes suitable for conveying fluids over long distances. The standard defines two product specification levels, PSL1 and PSL2, with PSL2 imposing stricter requirements on chemical composition, mechanical properties, and impact toughness to ensure reliability in demanding environments.
Product Features
Comprehensive Steel Grades: The specification covers a wide range of steel grades, including standard grades like L245 (Grade B) and high-strength grades such as X42, X52, X60, X65, X70, and X80. The "X" series grades utilize micro-alloying and controlled rolling to achieve high yield strengths, with X70 reaching a minimum yield strength of 485 MPa and X80 exceeding 555 MPa.
Diverse Manufacturing Processes: API 5L pipes are available in various manufacturing types to suit different project needs, including Seamless (S), Electric Resistance Welded (ERW), Longitudinally Submerged Arc Welded (LSAW), and Spirally Submerged Arc Welded (SSAW). This versatility allows for optimization based on pressure requirements and diameter specifications.
Strict Quality Control: Pipes manufactured to API 5L standards undergo rigorous testing, including hydrostatic testing, non-destructive electric testing, and chemical analysis. PSL2 pipes, in particular, require mandatory Charpy V-Notch impact testing to ensure performance in low-temperature environments.
Large Diameter Capability: Through LSAW and SSAW processes, API 5L pipes can be manufactured in large diameters (up to 1422mm or more) and thick walls, making them suitable for high-pressure, long-distance transmission mains.
Product Applications
Long-Distance Oil & Gas Transmission: The primary use is for main pipelines transporting crude oil and natural gas across countries and continents, such as the West-East Gas Transmission Project.
Urban Distribution Networks: Used for city gas distribution grids and water supply networks where reliability and safety are paramount.
Offshore Pipelines: High-grade PSL2 pipes are essential for subsea pipelines that must withstand high external pressure, corrosion, and harsh marine environments.
Industrial Process Piping: Utilized within refineries and petrochemical plants for gathering lines and process flow.
Emerging Energy Transport: Increasingly used in new energy applications, such as hydrogen blending pipelines (e.g., X52MS grade) and carbon capture transport systems.
